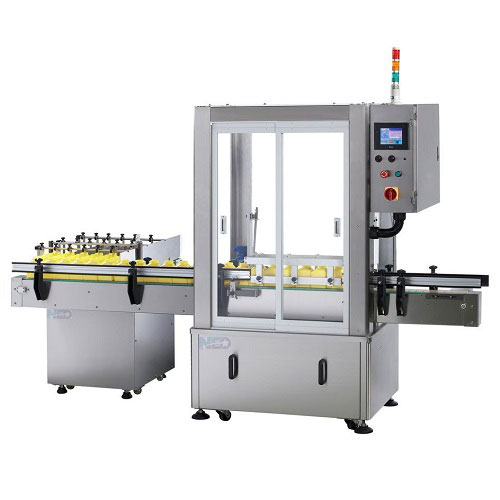

Bottle rinsing including rinsing machine and bottle rinser

Automatic Bottle Rinsing Machine BR-4125 always comes with bottle filler and tablet counter to meet cGMP regulation. Air or water rinsing even combo machine can be selected by customers needs.

FEATURES:

• Machine construction made by stainless steel SUS#304.
• Bottle turn-over transfer device
• Bottle sensor and indexing unit controlled by air cylinders
• Vacuum tank to collect dust and waste
• Bottle c1amper and rotary air cylinder to turn bottles 180 degree.
• Controlled by PLC control system.
• The Color HMI touch screen setting for easy operation
• The height of bottle holding assembly can be adjusted.
• Waterproof Germany SICK photocell sensor
• Sanitary SUS#304 and anodized aluminum frame
•


SPECIFICATIONS:

• Power：single phase 110/220VAC, 50/60Hz
• Machine Dimensions：(L)2300mm (W)940mm (H)1800mm
