Labelling machine including label applicator and bottle labeller

Ap Applicator

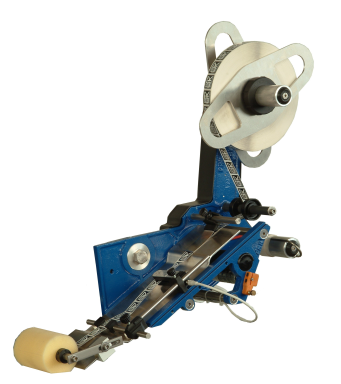

Machinery Automation's automatic labelling machines are designed for the application of labels on flat or round products. These robust and reliable machines comprise a labelling head to be installed on an existing conveyor or supported on an optional stand assembly.
The labeler offers variable speed, adjustable label sensor and optional product sensor, providing a simple to operate solution to many automated labelling requirements.
The stand is constructed using chromium coated stainless steel. It is adjustable in height and width, and comes complete with asymmetrical base with locking device and adjustable feet or self-locking wheels.

Specification

Speed Variable up to 15 mt/min
Machine size length mm 550
width mm 310
height mm 350
Motor Stepper motor
Products size min. round Ø mm 20 - flat mm 20 x 20
max. round Ø mm 100 - flat mm 120 x 300
Labels size min. mm 10 X 10
max. mm 100 X 150
Power 230 V AC
Accessories and Options: End of paper/paper break sensor | label roll end sensor, swinging arm and micro-switch | interface with your PLC | acoustic alarm pneumatic | reject system | encoder | swinging blade - swing arm for irregular surfaces | stand assembly
